Taiwan Carbon steel pipe whole-plant manufacturing equipment/Make mig tube machine

Inquire Now
  • Country of Origin:Taiwan
  • Model:YTM1/YTM2/YTM3/YTM4/YTM5/YTM6/YTM7

Carbon steel pipe machinery
Description:
Carbon steel pipe whole-plant manufacturing equipment is used mainly for producing different sizes of carbon steel round pipe, square pipe, and rectangular pipe.

Application:
Industry, construction, furniture, medical use, etc.

Special Feature:
a. Our machines are manufactured from finest materials. Steady, durable and long life.
b. Automatic control, easy to operate.
c. Easy to replace the molds, save working hour and increase efficiency.
d. Low noise.

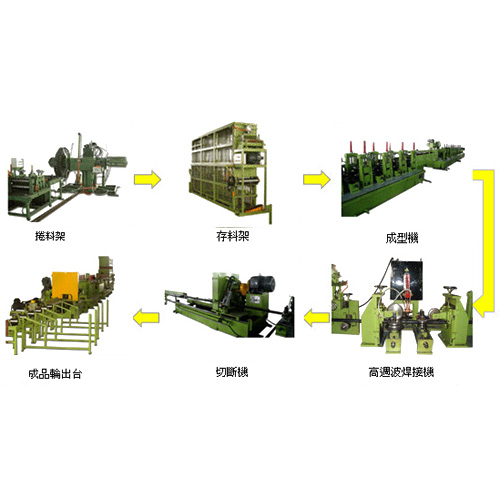

Production Flow Path:
First, the coil is set onto the uncoiler, and the steel belt is loosened and rolled into the storage cage, before being transported into the forming machine.
The steel belt is first flattened out, and is processed through rollers to squeeze it to the desired pipe diameter. The machine then welds, straightens and cuts the pipe to the length set in the automated cut-off machine, and transports the finished pipe to the run out table, where quality inspection can be performed .

Production Flow Chart:
1. Coil→2. Flattening→3. Forming→4. Welding→5. Cooling→6. Outside bead remove→7. Sizing→8. Cutting→9. Product Run Out Table→10. Inspection→11. Packing→12.Finished pipe
